MQ-41-F
New productItem #r4337

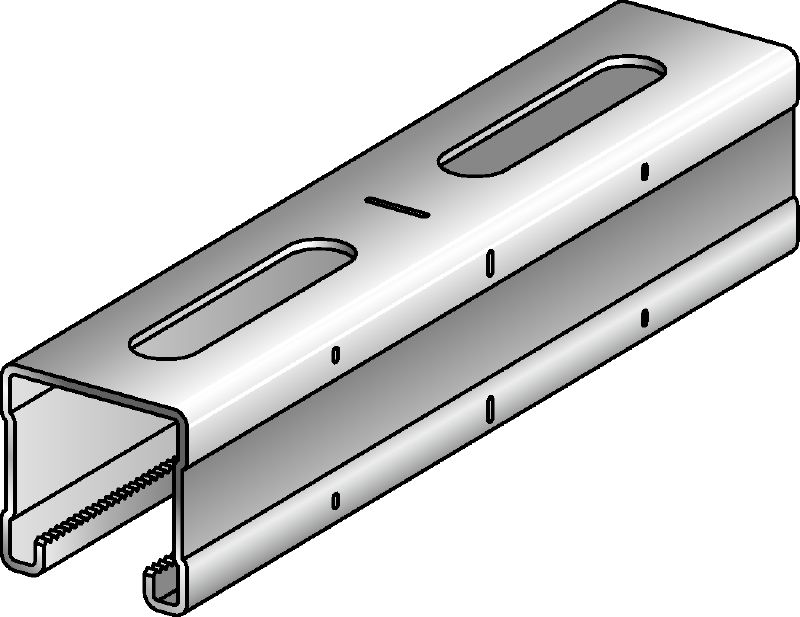

Hot-dip galvanised (HDG) MQ installation channel for medium-duty applications
- Material composition: S235JR - DIN EN 10025
- Surface finish: Outdoor Coated - HDG
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Share
Features & Applications
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Optimised hole pattern – for more flexible attachment options
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular strut channel system
- Sound insulation elements available for all MQ installation channels
Applications
- Recommended for use in moist interiors, on exteriors exposed to slight or no weathering and on back-ventilated facades
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
